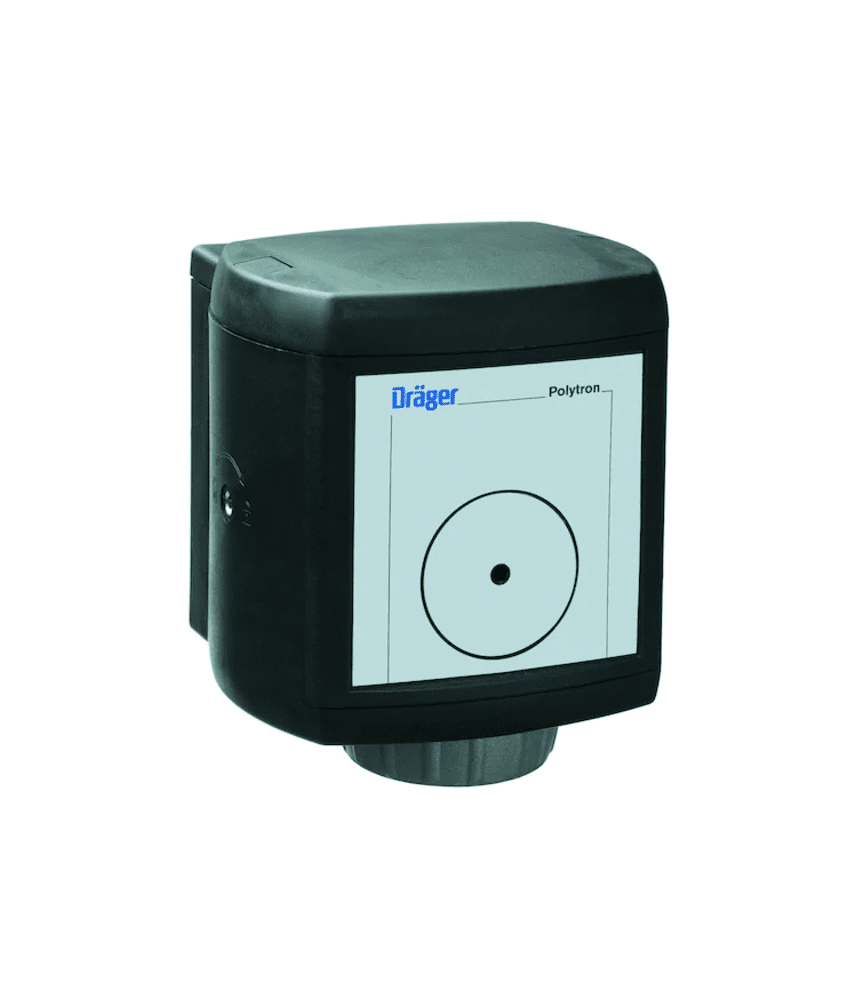

The Draeger Polytron 3000 is an intrinsically safe gas detector for the continuous monitoring of more than 60 toxic gases and oxygen in ambient air. It is the part of a new generation of gas detectors developed on a modular platform. Communication to the central control system is done via a 4 to 20 mA signal.
• Simple, quick installation
• Wide range of applications
• Easy to operate and maintain
• Explosion Protection
• Oil refineries/mining/OnShore/Off Shore
• Normal measurment possible with 4-20mA
• Instrensicaly Safe installation
• Contionous monitoring of Oxygen,H2S, Confined Space Installation to monitor
Gases and Ranges
Toxic gases and oxygen in various ranges
Output
Analog – 4 to 20 mA
Maintenance signal – 3.4 mA constant
Fault signal – < 3.2 mA
Power Supply
12 to 30 VDC, 2-wire
Ambient Conditions
Temperature – – 40 to + 65 °C / – 40 to + 150 °F
Pressure – 700 to 1300 mbar / 20.7 to 38.4 inch Hg
Humidity – 0 to 100 %RH, non condensing
Enclosure
IP 66 / 67, NEMA 4, GRP housing, M20 cable gland
Dimensions (approx.)
166 x 135 x 129 mm / 6.54″ x 5.32″ x 5.08″ (H x W x D)
