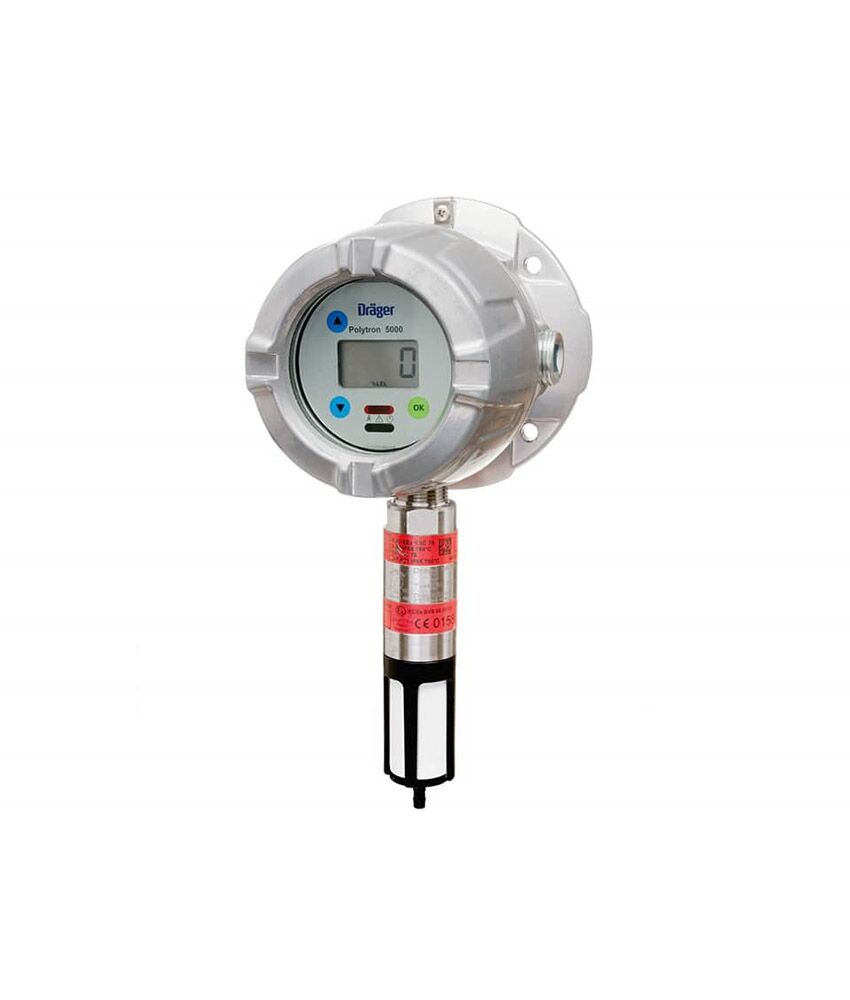

The Dräger Polytron® 5310 IR is an affordable, explosion-proof gas transmitter designed for detecting flammable gases at LEL concentrations.With an infrared DrägerSensor® IR, the device can be customized to detect methane, propane, or ethylene. .The device supports a 3-wire 4 to 20 mA analog output and relays, ensuring compatibility with different control systems
• Poison-resistant and fail-safe – the DrägerSensor IR
• Same design, same operating principle
• Three relays for controlling external equipment
• Safe, robust housing for every application
• Make the impossible possible with the remote sensor
For the detection of flammable gases in the lower explosion limit (LEL). It uses an infrared DrägerSensor® IR that can be configured for methane, propane, or ethylene. A 3 wire 4 to 20 mA analog output with relays makes it compatible with most control systems. It is poison-resistant against chemicals that can shorten a catalytic bead pellistor’s life. Long life optics result in lower maintenance costs compared to pellistors. IR technology is inherently fail-safe, meaning no unrevealed failures.
Type
Explosion proof / flameproof enclosed transmitter (“d”) or combined with increased safety (“d/e”)
Gases
Flammable gases and vapours
Measuring range
0 to 100% LEL
Display
Backlit 4 digit LCD; 3 Status LEDs (green/yellow/red)
Sensitivity
≤± 2 % LEL
Response time
T90 30 seconds (with splash guard)
Signal output analogue
Normal operation 4 to 20-mA
Maintenance Constant 3.4-mA or 4-mA ±1 mA 1 Hz modulation; (adjustable)
Power supply
10 to 30 V DC, 3-wire
Relay specification (optional)
2 alarm relays and 1 fault relay, single-pole two-way contact 5 A @ 230 VAC, 5 A @ 30 VDC, resistance-bound
Temperature
-40 to 65 °C (-40 to 149 °F) without relay
-40 to 65 °C (-40 to 149 °F) with relay
Pressure
20.7 to 38.4 inch Hg / 700 to 1,300 mbar
Humidity
0 to 100 % r. h., non-condensing
Transmitter housing
Epoxy coated copper-free aluminum or stainless steel SS316 L
Enclosure protection type
NEMA 4X & 7, IP65/66/67
Cable entry point
3/4 NPT threads or M20 cable gland
Dimensions (H x W x D), approx.
w/o docking station 11.0″ x 5.9″ x 5.1″ / 280 x 150 x 130 mm
w/ docking station 11.0″ x 7.1″ x 7.5″ / 280 x 180 x 190 mm
Weight, approx.
Aluminium w/o docking station 4.9 lbs / 2.2 kg
SS316 L w/o docking station 8.8 lbs / 4.0 kg
