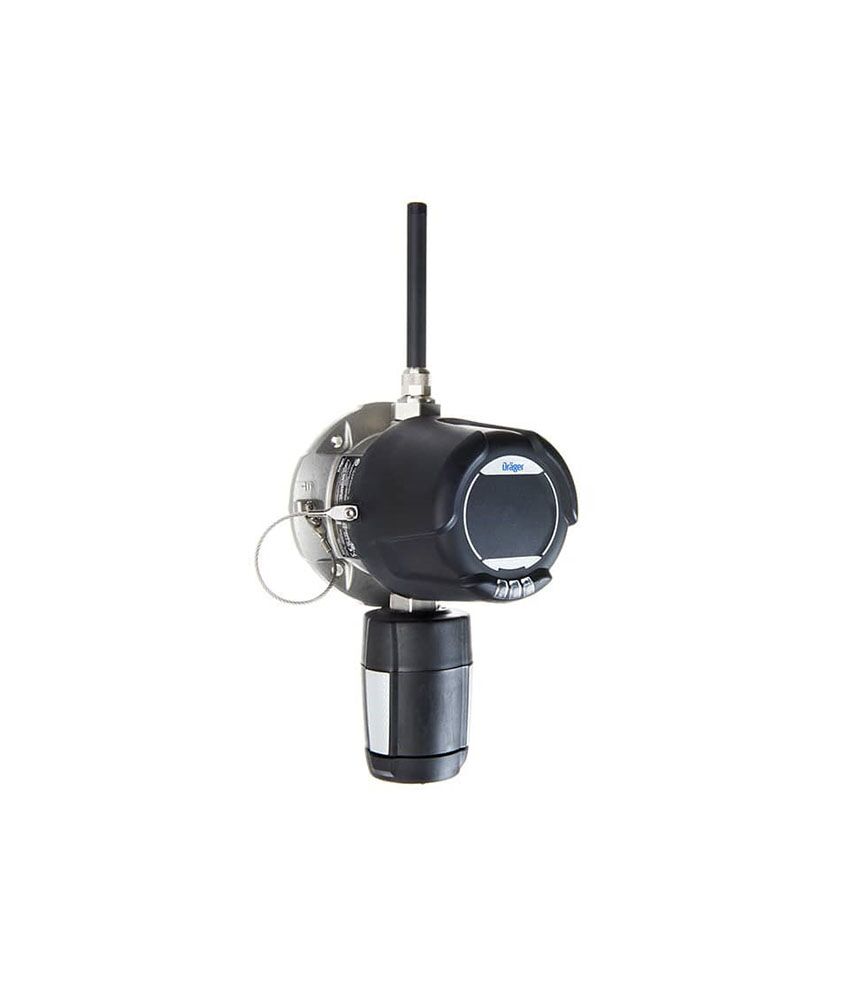

Draeger Polytron 6100 EC WL (Wireless) Toxic Gas Detector

• Wireless reduces your efforts
• Choose your radio standard: ISA100 or WirelessHART
• No compromises with the proven Dräger sensor technology
• Access to the transmitter via Bluetooth
• Cost-effective in maintenance
• External power supply possible
• Transmission of signals even over long distances

Transmitter for continuous monitoring of toxic gases and oxygen. The instrinsically safe and SIL2-rated transmitter features completely wireless signal transmission and power supply. The internal battery pack allows the transmitter to operate continually for up to 24 month. This makes the Polytron a flexible and cost efficient solution for plant expansions, upgrades or new installations. The Polytron 6100 EC WL is also well applied in the plant areas, which require mobile solutions, are difficult to reach or do not provide any infrastructure. Wireless detection reduces your planning effort required whilst retaining the same safety levels provided by a wired transmitter.

Gases and measuring range	Toxic gases and Oxigen, see sensor data sheet. All DrägerSensors are supported.
Housing material	Stainless steel 316
Protection class	IP66/67
Dimensions	320 x 150 x 170 mm (with 2dBi aerial)
Weight transmitter	Ca. 3.2 kg (7.0 lb)
Weight battery pack	Ca. 0.5 kg (1.1 lb)
Battery type	Lithium thionyl chloride (Battery pack with 4 D cells)
Battery life time	Depending on operating conditions; max. 24 months
Wired power supply	2-wire shielded cable, 24-12 AWG / 0,2 – 2,5 mm²
Operating voltage	14 to 30 V
Temperature	-40 to +65 °C (-40 to +149 °F)
Pressure	700 to 1,300 hPa (20.7 to 38.4 in Hg)
Humidity	0 to 100 % r.h., non-condensing
Communication	Bluetooth® (for operation and service purposes) Range 15 m Measured value transmission (process interface), protocol ISA100 WirelessTM oder WirelessHART® Type IEEE802.15.4 in 2.4 GHz-ISM-Band Range 500 m in free area
Approvals	ATEX / IECEx, CE-Directive, Safety Integrity Level SIL2
