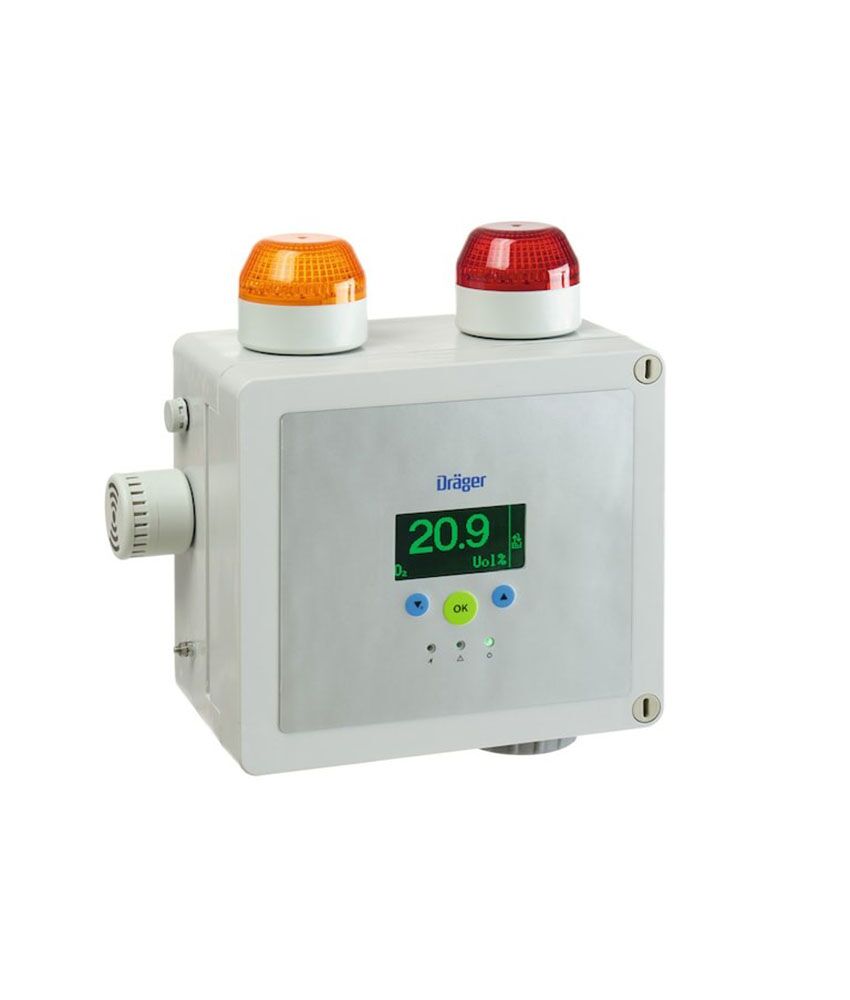

The Dräger PointGard 2100 is an all-in-one gas detection unit designed for ongoing monitoring of toxic gases in the surrounding air. Housed in a tough, water-resistant enclosure, it includes an integrated power supply, visual and audible alarms (horn and strobes), and utilizes the trusted DrägerSensor® for dependable performance.
• Ready to use out of the box
• Detect over 100 toxic gases using DrägerSensors
• Flexible communications
• Rugged and compact housing
• Advanced display with diagnostics
• Monitor remote areas up to 30 meters away
For the continuous area monitoring of toxic gases in ambient air. PointGard 2100’s rugged, water-resistant housing comes complete with a horn and strobes, a built-in power supply, and reliable DrägerSensor®. Just mount it on a wall and hard wire it to an AC/DC power or plug in the optional AC power cord. Since the strobes and horn are built in, there is no need to specify and purchase separate alarm output devices. The pre-calibrated sensor is ready to use.
Dräger PointGard 2100 EC
Toxic gases and oxygen in ambient air
Type
Self-contained gas monitor with alarm devices for general-purpose applications
Measuring ranges
Electrochemical (EC) sensor
LCD display
75 mm/3″ backlit graphic LC display
Indicators
3 status LEDs (green/yellow/red)
Operation
Through three front mounted push buttons
Security
Separate passwords for maintenance and configuration menu
Functions
Event and data logger with a capacity of up to 35,000 records, Warning and error messages displayed in plain text
Signal output analog
Normal operation – 4–20 mA
Power supply AC version
Operating voltage : 100–240 VAC 50–60 Hz
Power supply DC version
Operating voltage : 8–30 VDC
Electrical certification
CE rating, IEC/EN 61010-1
Alarm devices
Variants with amber and red LED strobes activate on 2 alarm levels independently
Temperature
Storage : -20 to +65 °C/-4 to +149 °F
Operation : -20 to +50 °C/-4 to +122 °F
Humidity : 0 to 95% r. h., noncondensing
Pressure : 20.7 to 38.4″ Hg/700 to 1,300 hPa
Material
Glass fiber reinforced polyester (GFRP)
Mounting
Wall mount with internal screws or optional SS mounting brackets
