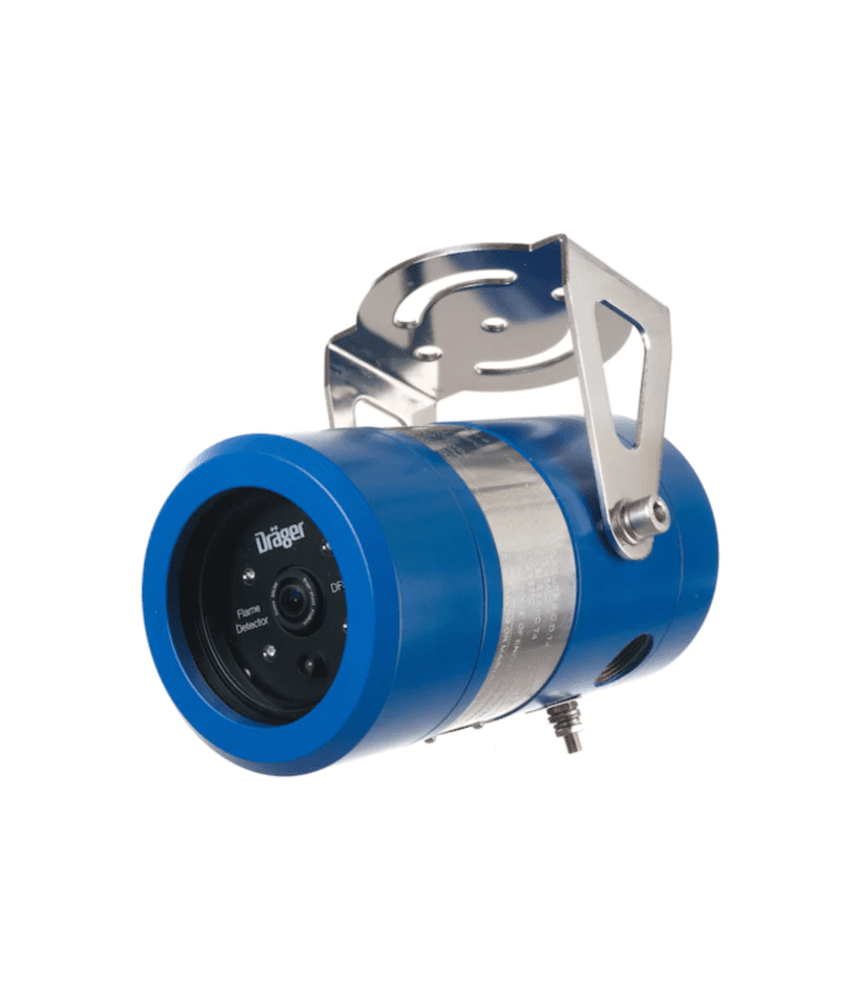

The Draeger Flame 3000 is an imaging based explosion proof flame detector. This visual flame detection system uses digital image processing and advanced algorithms to process and interpret flame characteristics. This principle offers an extended field of view and fewer false alarms.
• Superior False Alarm Immunity
• Enlarged Field of View
• Flexible operation
• Functional testing
• Easy to install and use
applications
Response Time4 seconds (typical), configurable up to 30 seconds
Type
Explosion proof visual flame detector
Spectral range
Near Infrared
Field of view
Horizontal 120°, vertical 80°
Temperature
#60 to +85 °C (#76 to +185 °F)
Pressure
915 to 1,055 hPa
Humidity
0 to 95 % RH, non-condensing
Signal Output
0 to 20 mA
Supply Voltage
24 VDC nominal (18 bis 32 VDC)
Power Input
2.8 W (typical)
Material
Aluminium or Stainless Steel
Cable Gland
Weight
2,5 kg (5,5 lbs) Aluminium or 6 kg (13,2 lbs) Stainless Steel
Dimensions (D x L)
200 x 100 mm (7.9 x 3.9 inch)
Protecting Class
IP66, NEMA 4X
Approvals
ATEX, IECEx, FM/CFM, FM3260 (Radiant Energy Sensing Fire Detectors for Automatic Fire Alarm Signaling), FM3600, FM3615, FM3810,ANSI/NFPA 72
