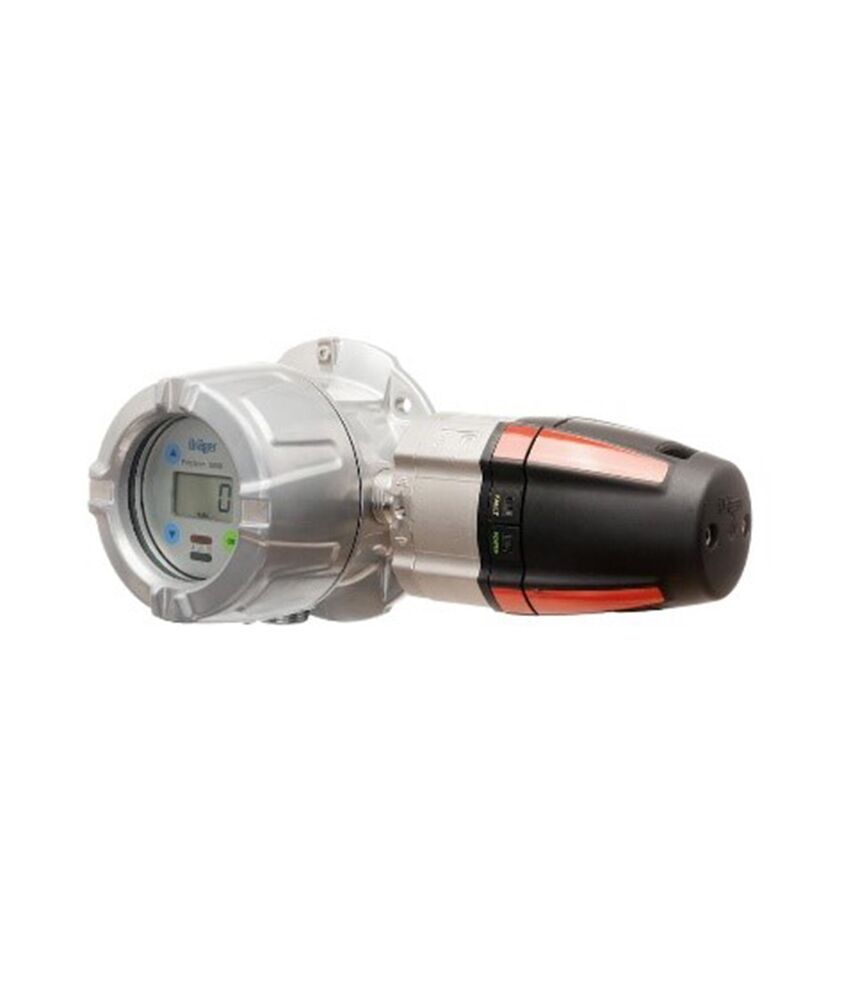

The Dräger Polytron® 5700 IR is a cost effective explosion proof transmitter for the detection of flammable gases in the lower explosion limit (LEL). It uses a high performance infrared Dräger PIR 7000 sensor, which will quickly detect most common hydrocarbon gases. A 3 wire 4 to 20 mA analog output with optional relays makes it compatible with most control systems.
• Efficient, stable and robust – the Dräger PIR 7000
• Choose a target gas with the smart gas library
• Same design, same operating principle
• Three relays for controlling external equipment
• Safe, robust housing for every application
• Make the impossible possible with the remote sensor
For the detection of flammable gases in the lower explosion limit (LEL). It uses a high performance infrared Dräger PIR 7000 sensor, which will quickly detect most common hydrocarbon gases. A 3 wire 4 to 20 mA analog output with optional relays makes it compatible with most control systems. With its stainless steel SS 316L enclosure and drift-free optics, the Dräger PIR 7000 is built to withstand the harshest industrial environments, offshore installations.
Type
Explosion-proof / flameproof enclosed transmitter (“d”) or combined with increased safety (“d/e”)
Gases
Flammable gases and vapours
Measuring ranges
0 to 20 … 100 % LEL
Display
Backlit 4 digit LCD; 3 Status LEDs (green/yellow/red)
Signal output analogue
Normal operation 4 to 20-mA
Power supply
10 to 30 V DC, 3-wire
Temperature
-40 to 77 °C (-40 to 170 °F) without relay
-40 to 70 °C (-40 to 158 °F) with relay
Transmitter housing
Epoxy coated copper-free aluminum or stainless steel SS316 L
Enclosure protection type
NEMA 4X & 7, IP65/66/67
Dimensions (H x W x D), approx.
w/o docking station 11.0” x 5.9” x 5.1” / 280 x 150 x 130 mm
w/ docking station 11.0” x 7.1” x 7.5” / 280 x 180 x 190 mm
Weight, approx.
Aluminium w/o docking station 8.6 lbs / 3.9 kg
SS316 L w/o docking station 12.6lbs / 5.7 kg
