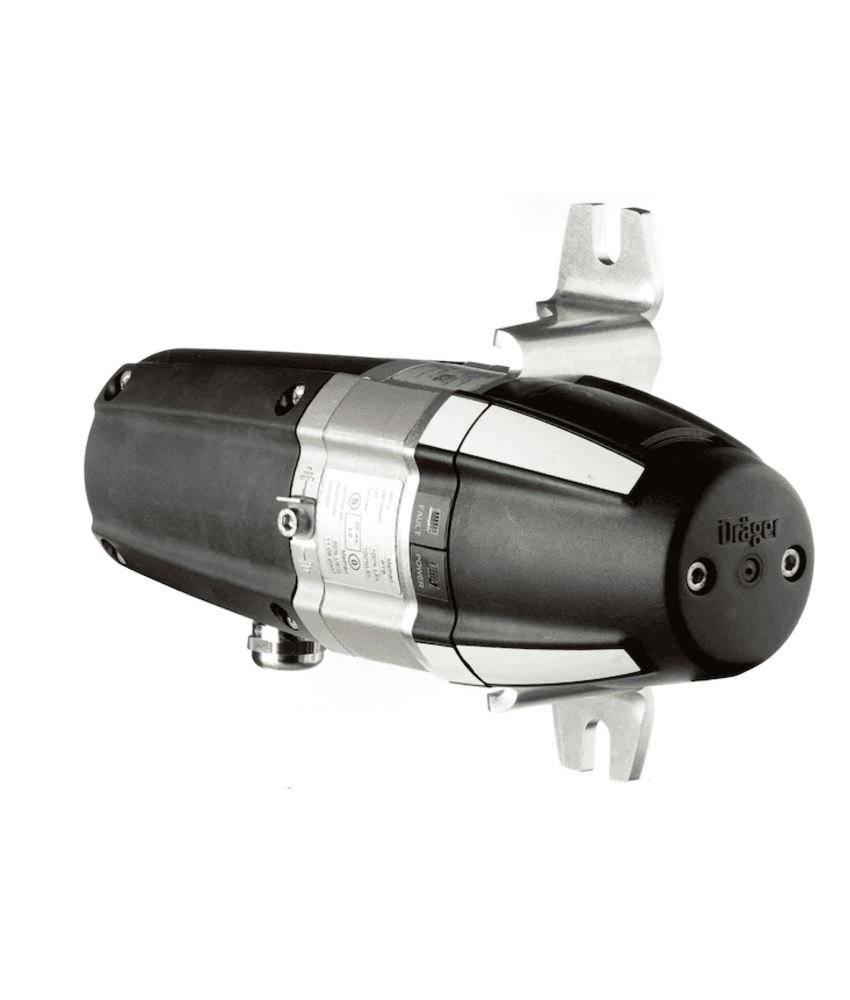

The Draeger PIR 7200 is an explosion proof point infrared gas detector for continuous monitoring of carbon dioxide. Designed for the industrial use, the transmitter offers drift-free optics. And due to its robust product design the PIR 7200 can be operated even in harsh environments.
• Advanced signal stability
• Fast response
• Multiple configuration capabilities
• Maximum reliability – SIL 2 certified
• Oil refineries/mining/OnShore/Off Shore /Tank Farms/Water treatment plants
• Continous monitoring of Hydrocarbon Flammable Gases using IR technology with LED indication
• Measuement Inside the Duct, Remote applications
• Hazardous area Application (zone 1,Zone2)
Type
Explosion proof gas transmitter with infrared sensor technology
Carbon dioxide (CO2), 0 to 10 % vol. (default), 0 to 2,000 ppm … 30 % vol. (configurable)
Measuring performance (carbon dioxide, 0 to 10 % vol.)
Digital resolution – 0.02 % vol.
Repeatability – ≤ ±0.1 % vol.
Response time t0..90 – ≤ 4 seconds (“normal response”), < 1 second (“fast response”)
Electrical data
Output signals – 4 to 20 mA, HART
Fault signal – ≤ 1.2 mA (configurable)
Beam block warning signa – 2 mA (configurable)
Maintenance signal – 3 mA (configurable)
Power supply – 13 to 30 V DC, 3-wire
Power consumption – 5.6 W (typical)
Ambient conditions
Temperature – -40 to +-77 °C / -40 to +170 °F(operating), -40 to +-85 °C / -40 to +180 °F (storage)
Humidity – 0 to 100 %RH
Pressure – 700 to 1,300 hPa / 23.6 to 32.5 inch Hg
Enclosure
Material – Stainless steel SS 316 L
Connecting thread – M25 or ¾‘‘ NPT
Weight – 2.2 kg (without accessories)
Dimensions – 160 mm × Ø 89 mm / 6.3 ‚‘ × Ø 3.5 ‚
Ingress protection – IP66 and IP67, NEMA 4X
