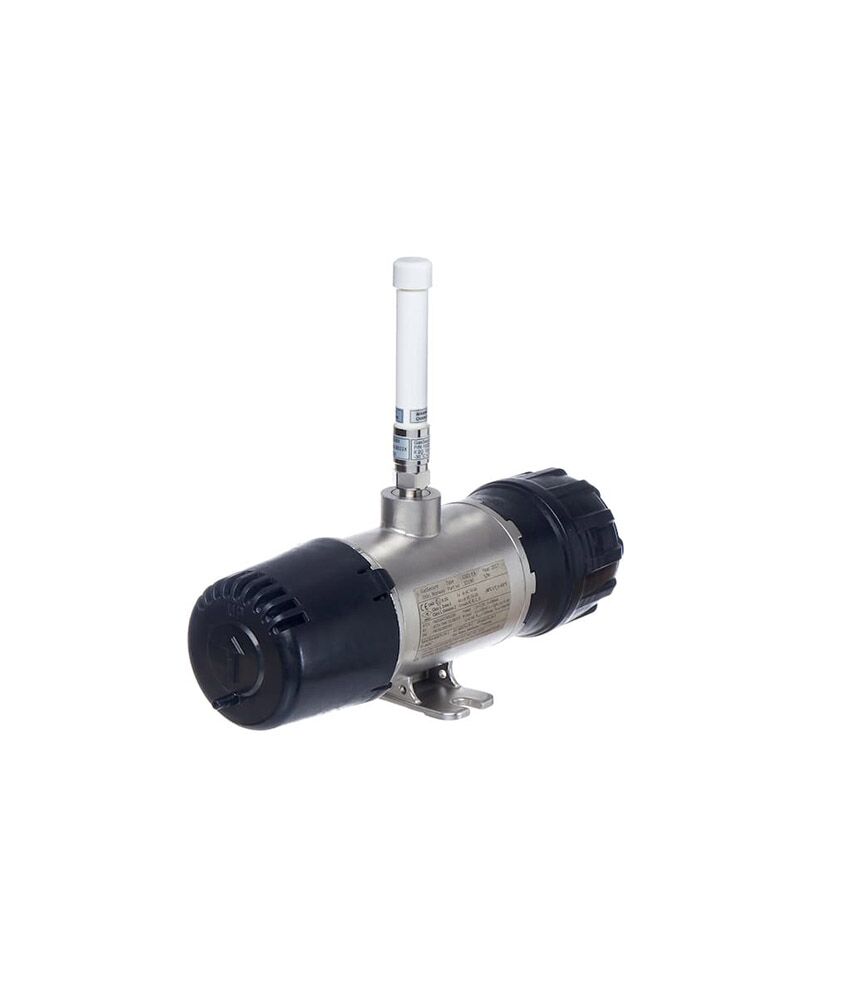

The GS01 is a wireless infrared gas transmitter for continuous monitoring of flammable hydrocarbon gases and vapours in the oil and gas industry. The intrinsically safe and SIL-rated transmitter features completely wireless signal transmission and power supply. This makes the GS01 a flexible and cost efficient solution for plant expansions, upgrades, and new greenfield projects.
• Installations in demanding conditions
• Saving time and money throughout the project
• Saving time and money during operation
• Safe, wireless communication
For continuous monitoring of flammable hydrocarbon gases and vapours in the oil and gas industry. The intrinsically safe and SIL-rated transmitter features completely wireless signal transmission and power supply. This makes the GS01 a flexible and cost efficient solution for plant expansions, upgrades, and new greenfield projects. GS01 wireless transmitter requires no cable installation, either for signal transmission or for its power supply. As such, installation is easy and uncomplicated and the transmitter sends its signal to the access point up to 500 metres away. No cable conduits are required for the power supply or for signal transmission. Plus, the GS01-EA product variant with separate antenna can be installed inside machines or buildings where signal transmission is impossible due to shielding. For temporary applications, such as maintenance work on petrochemical plants or exploratory drilling, the GS01 offers you maximum flexibility.
Measuring principle
Infrared single beam, triple wavelength
Detectable gases
0 to 100 % LEL (Methane) : 0 to 80 % LEL (Propane)
Calibration
Factory-set, no field calibration
Response time
≤ 5 seconds
Accuracy
± 3 % LEL or ± 10 % of measured value, each the higher value (refers to Methane)
Zero-point stability
± 3 % LEL (lifelong)
Battery type
Lithium-Thionyl Chloride
Battery lifetime
Up to 2 years (depending on the environmental conditions)
RF power
GS01: < 12 dBm EIRP
GS01-EA: < 16 dBm EIRP
Communication
Type IEEE802.15.4 in 2.4 GHz ISM Band
Protocol ISA100 Wireless™
Gateway output Standard: Modbus TCP/RTU, OPC _ Optional: PROFINET® (SIL2)
Operating temperature
-30 °C to +55 °C (if higher temperature ranges up to +65 °C are required please contact Dräger)
Storage temperature
-40 °C to +65 °C
Humidity
0 to 100 % RH
Protection Class
IP66 and IP67
Dimensions
300 x 110 x 170 mm
Weight
2.8 kg (incl. Battery)
Mounting
With bracket for 8 mm or 5/16″ bolts
Approvals
ATEX / IECEx, FM, Performance Approval Compliant with EN 60079-29-1, Safety Integrity Level SIL2 IEC 61508, Ed.2.0
