Draeger PointGard 2200 Flammable Gas Detector

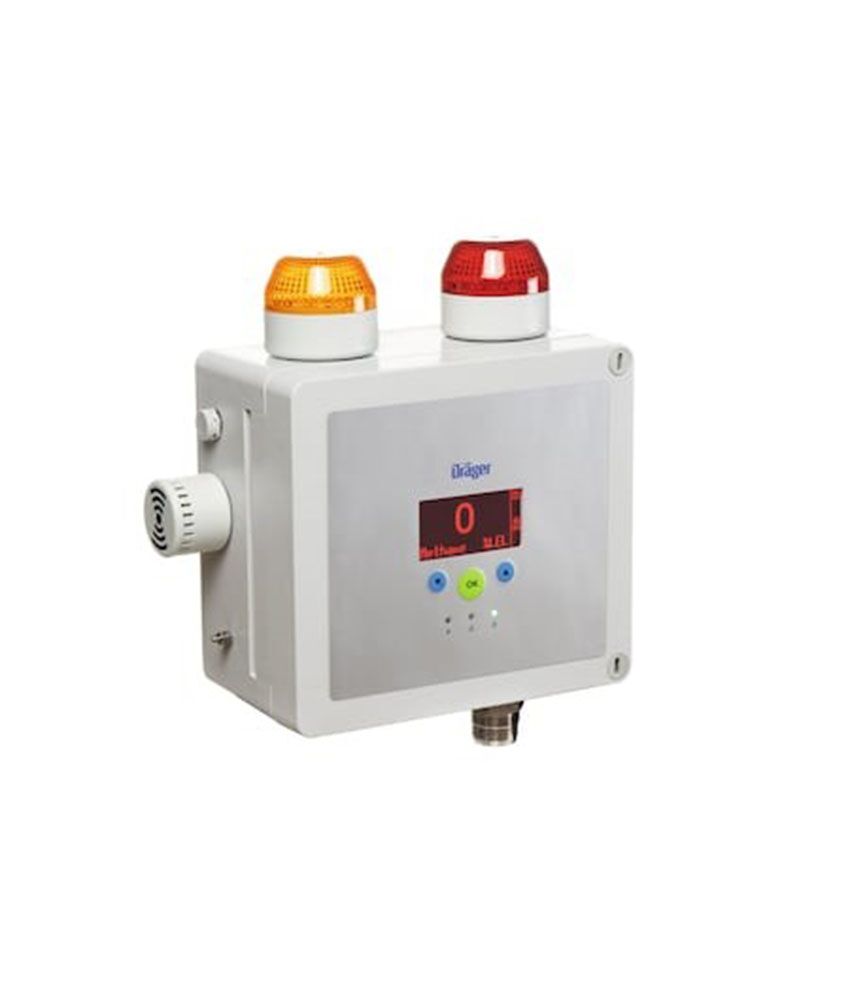

The Dräger PointGard 2200 series is a self-contained gas detection system for the continuous area monitoring of flammable gases and vapours in ambient air. PointGard 2200’s rugged, water-resistant housing comes complete with a horn and strobes, a built-in power supply, and reliable DrägerSensor®.
• Ready to use out of the box
• Fast and stable flammable gas detection
• Flexible communications
• Rugged and compact housing
• Rugged and compact housing
• Monitor remote areas up to 30meter (98ft) away
For the continuous area monitoring of flammable gases and vapours in ambient air. PointGard 2200’s rugged, water-resistant housing comes complete with a horn and strobes, a built-in power supply, and reliable DrägerSensor®. Just mount it on a wall and hard wire it to an AC/DC power or plug in the optional AC power cord. Since the strobes and horn are built in, there is no need to specify and purchase separate alarm output devices.
Dräger PointGard 2200 CAT Ex | Flammable gases in ambient air |
Type | Self-contained gas monitor with alarm devices for general-purpose applications |
Measuring Range | Catalytic bead (CAT Ex) sensor 0–100% LEL |
LCD display | 75 mm/3″ backlit graphic LC display Selectable red or green illumination, alphanumeric |
Indicators | 3 status LEDs (green/yellow/red) |
Operation | Through three front mounted push buttons |
Security | Separate passwords for maintenance and configuration menu |
Signal output analog | Normal operation 4–20 mA Maintenance Constant 3.4 mA or 4 mA ±1 mA 1 Hz modulation (adjustable) |
Power supply AC version | Operating voltage 100–240 VAC 50–60 Hz Nominal power 6 W Operating current (max) 0.5 A Inrush current Max. 40 A at 230 VAC 50 Hz |
Power supply DC version | Operating voltage 8–30 VDC Nominal power 6 W Operating current (max) 2.5 A |
Electrical certification | CE rating, IEC/EN 61010-1 Complies with UL 61010-1 Class B device, residential use compliant with ICES-3(B)/ NMB-3(B) |
Relay specification | 2 alarm relays and 1 fault relay SPDT contact 5 A @ 230 VAC, 5 A @ 30 VDC, resistance bound Alarm reset through front-mounted push button |
Alarm devices | Variants with amber and red LED strobes activate on 2 alarm levels independently Variants with green steady light activate red strobe on 1 common alarm level. Green steady light turns off during alarm or fault condition; optional blue LED strobe 85-105 dB adjustable-volume buzzer with continuous and pulsating tone |
Temperature (storage) | -20 to +65 °C/-4 to +149 °F |
Temperature (operation) | -20 to +50 °C/-4 to +122 °F |
Humidity | 0 to 95% r. h., noncondensing |
Pressure | 20.7 to 38.4″ Hg/700 to 1,300 hPa |
Material | Glass fiber reinforced polyester (GFRP) |
Mounting | Wall mount with internal screws or optional SS mounting brackets |
Housing protection type | IP66 (pending); indoor or outdoor use |
Housing certification | UL 508A/50/50E; CSA C22.2 94.1/94.2/14–13 |
Cable entry point | 3 cable glands, M20 |
Size (L x W x D) | 255 x 280 x 120 mm/10 x 11 x 4.7″ |
Weight | 4.2 kg/9.2 lbs |
