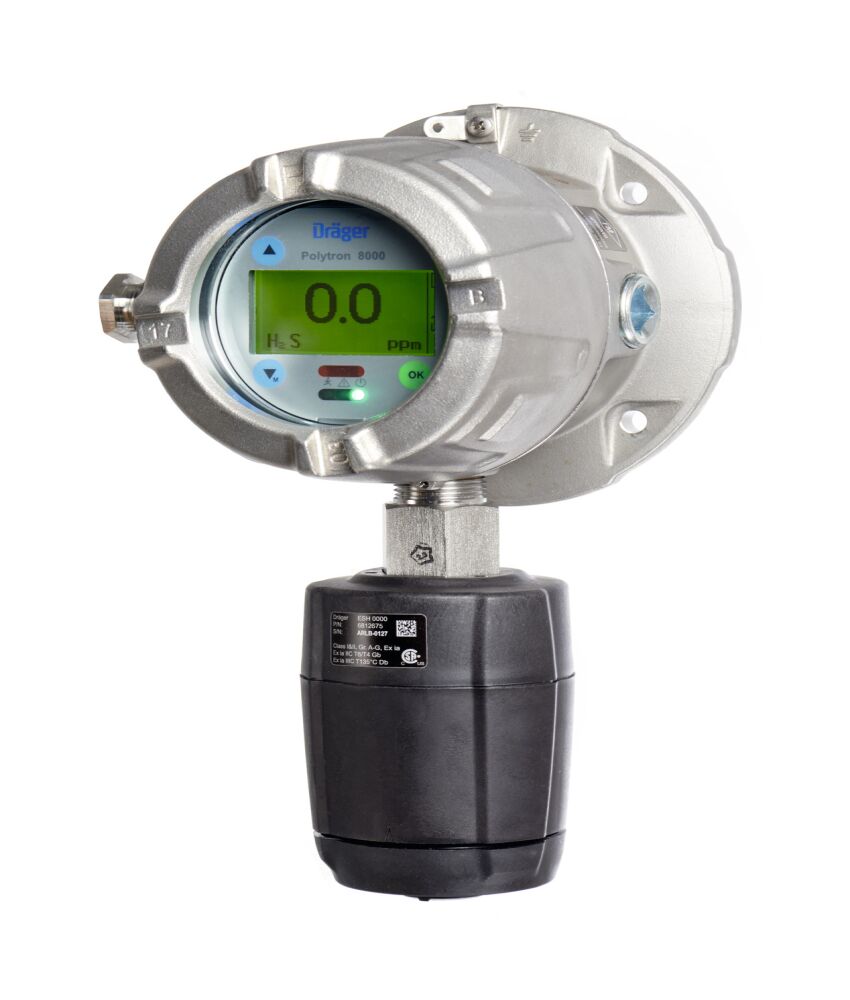

The Polytron 8100 EC is Draeger’s top of the line explosion proof transmitter for the detection of toxic gases or oxygen. It uses a high performance plug and play electrochemical DragerSensor® to detect a specific gas. Besides a 3 wire 4 to 20 mA analogue output with relays, it also offers Modbus and Fieldbus protocol making it compatible with most control systems.
• Durable, intelligent and sensitive – the DraegerSensor
• Easy device management via digital communication
• Same design, same operating principle (Polytron 8100 belongs to the Polytron 8000 series)
• Three relays for controlling external equipment
• Safe, robust housing for every application
• Remote sensor option does not require conduit
• More functions through dongles
• Oil refineries/mining/OnShore/Off Shore /Water treatment Plant
• Normal measurment possible with 4-20mA , Hart and optional Relay
• Measuement of Toxic Gases inside the Duct ( Remote installation up to 30 meters Available)
• Hazardous area Application (zone 1,Zone2)
• Contionous monitoring of Oxygen,H2S, Confined Space Installation to monitor
• Remote installation with relay options.
Type
Explosion proof / flameproof enclosed transmitter (“d”) or combined with increased safety (“d/e”)
Gases and Ranges
Toxic gases and oxygen, dependent on the sensor used
Measuring ranges
Customized adjustment
Display
Backlit graphic LCD; 3 Status LEDs (green/yellow/red)
Signal output analogue
Normal operation – 4 to 20 mA, 3- or 4-wire, sink or source
Maintenance – Constant 3.4 mA or 4 mA
Fault – < 1.2 mA
Signal output digital
HART® w/ 3- or 4-wire, PROFIBUS® PA, FOUNDATION fieldbus™ H1 and Modbus RTU w/ 4-wire
Power supply
10 to 30 V DC
Relay specification (option)
2 alarm relays and 1 fault relay, SPDT 5 A @ 230 VAC , 5 A @ 30 VDC, resistance-bound
Temperature
-40 to 65 °C (-40 to 149 °F) without relay , -40 to 65 °C (-40 to 149 °F) with relay
Pressure
20.7 to 38.4 inch Hg / 700 to 1,300 mbar
Humidity
0 to 100 % r. h., non-condensing
Transmitter housing
Epoxy coated copper-free aluminium or stainless steel SS316 L
Sensor housing
Polyamide
Enclosure protection type
NEMA 4X & 7, IP65/66/67
Cable entry point
3/4″ NPT threaded holes or M20 cable gland
Dimensions (H x W x D)
w/o docking station – 11.0″ x 5.9″ x 5.1″ / 280 x 150 x 130 mm
w/ docking station – 11.0″ x 7.1″ x 7.5″ / 280 x 180 x 190 mm
Weight, approx
6.6 lbs / 3.0 kg to 14.3 lbs / 6.5 kg
Approvals
UL, CSA, IECEx, ATEX, CE markings, SIL 2 certified by TUEV Sued,
