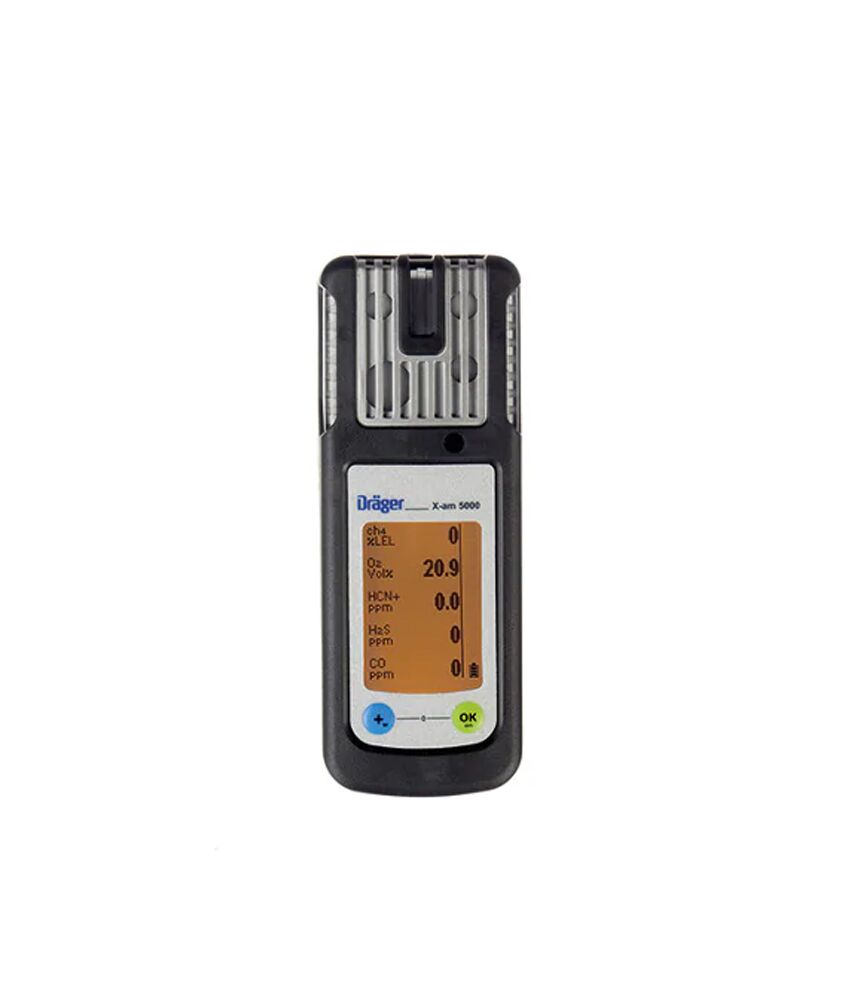

Dräger X-am 5000 Multi Gas Detector
The Dräger X-am® 5000 belongs to a generation of gas detectors, developed especially for personal monitoring applications. This 1- to 5-gas detector reliably measures combustible gases and vapours as well as O2 and harmful concentrations of toxic gases, organic vapours, Odorant and Amine.
• Ergonomic mobile phone design
• Flexible sensor exchange
• Poison-resistant ex sensor
• Durable sensor technology
• Robust and watertight
• optional external pump
• Optimum solutions for function or bump tests and calibrations
• Flexible power supply
• Can be equipped with infrared sensor.
Portable gas detectors are mobile since they are carried on or by personnel. They are used by anyone who is entering a confined space to assess the gases inside and to measure the concentration of the oxygen, or where there’s the potential for the presence of a dangerous gas or a lack of oxygen. The detector can be carried by the person so that the breathing zone is constantly monitored for safety. And can be used to measure gases in absence of oxygen as well using Draeger infrared sensor.
|Dimensions (W x H x D)||48 x 130 x 44 mm|
|Weight||Approx. 220-250 g|
|Operating times||> 12 hours with Alkaline and NiMH; > 13 hours with NiMH HC; without Ex Sensor typ. > 250 hours with Alkaline Battery; when using the Save Energy Mode > 40 hours|
|Datalogger||Retrievable using an infrared interface > 1000 h with 4 gases
at a recording interval of 1 value per minute
|Air pressure||700 to 1,300 mbar|
|Air humidity||10 to 95% relative humidity, non-condensing|
|Temperature||-20 °C to +50 °C|
|Charging time||<4 hrs|
|Approvals||cCSAus, IECEx, ATEX, CE, MED|
