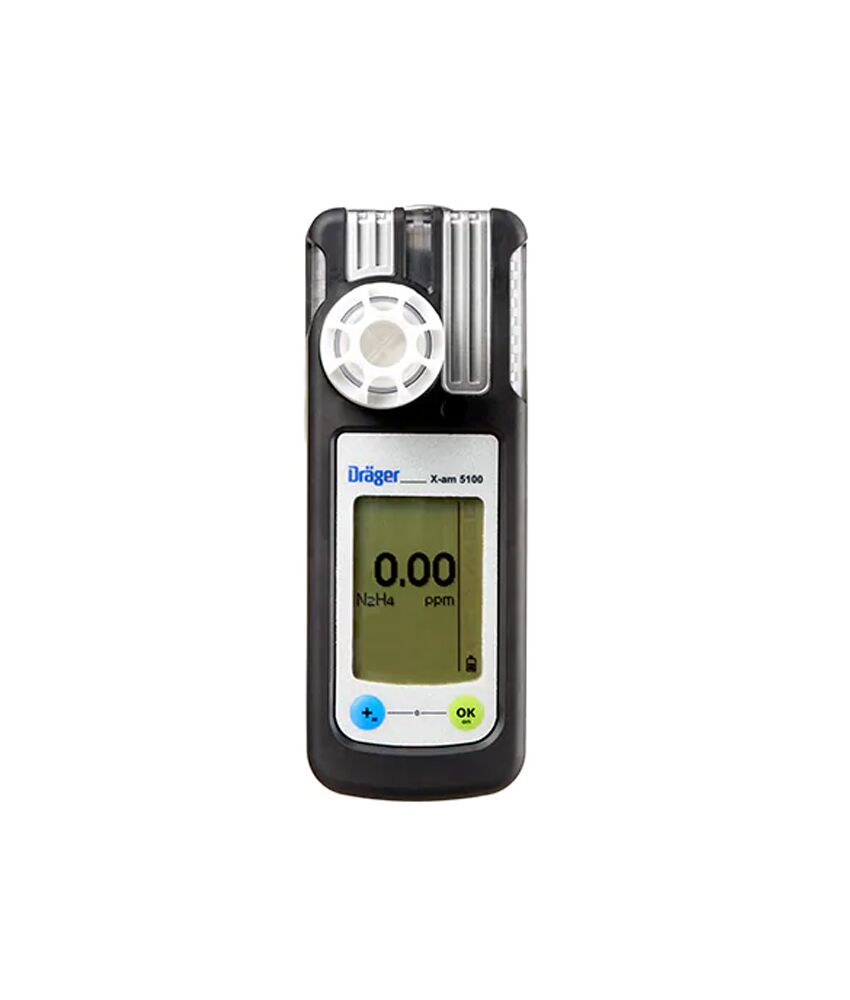

For manufacturing petrochemical products, aseptic packing, or handling of rocket fuel: the Dräger X-am 5100 portable single-gas detector ensures safe handling of HF, HCl, H2O2 or hydrazine – thanks to proven Dräger sensor technology and a device design which is perfectly customized to reactive gases.
• Ergonomic mobile phone design
• Flexible sensor exchange
• Poison-resistant ex sensor
• Durable sensor technology
• Robust and watertight
• Robust and watertight
• External pump
• Area monitoring
• Optimum solutions for function or bump tests and calibrations
• Flexible power supply
Portable gas detectors are mobile since they are carried on or by personnel. They are used by anyone who is entering a confined space to assess the gases inside and to measure the concentration of the oxygen, or where there’s the potential for the presence of a dangerous gas or a lack of oxygen. The detector can be carried by the person so that the breathing zone is constantly monitored for safety
Dimensions (W x H x D)
48 x 130 x 61 mm
Weight
220-250 g
Charging time
<4 hrs
Operating time
> 12 hours with Alkaline and NiMH; > 13 hours with NiMH HC; without Ex Sensor typ. > 250 hours
with Alkaline Battery; when using the Save Energy Mode > 40 hours
Protection class
IP54
Pump operation
Maximum hose length 30 m; 98 ft.
Data logger
> 12 hours with Alkaline and NiMH; > 13 hours with NiMH HC; without Ex Sensor typ. > 250 hours
with Alkaline Battery; when using the Save Energy Mode > 40 hours
Air pressure
700 to 1,300 hPa
Air humidity
10 to 90% relative humidity, non-condensing
Temperature
-20 °C to +50 °C
Approvals
ATEX
I M1 Ex ia I Ma, II 1G Ex ia IIC T3 Ga, I M2 Ex d ia I Mb, II 2G Ex d
ia IIC T4 / T3 Gb
Performance approval to:EN 50104 (2002) + A1 (2004) O2
EN 45544 CO & H2S
EN 60079-29-1:2007 Methane to nonane
EN 50271:2010 Software and documentation
