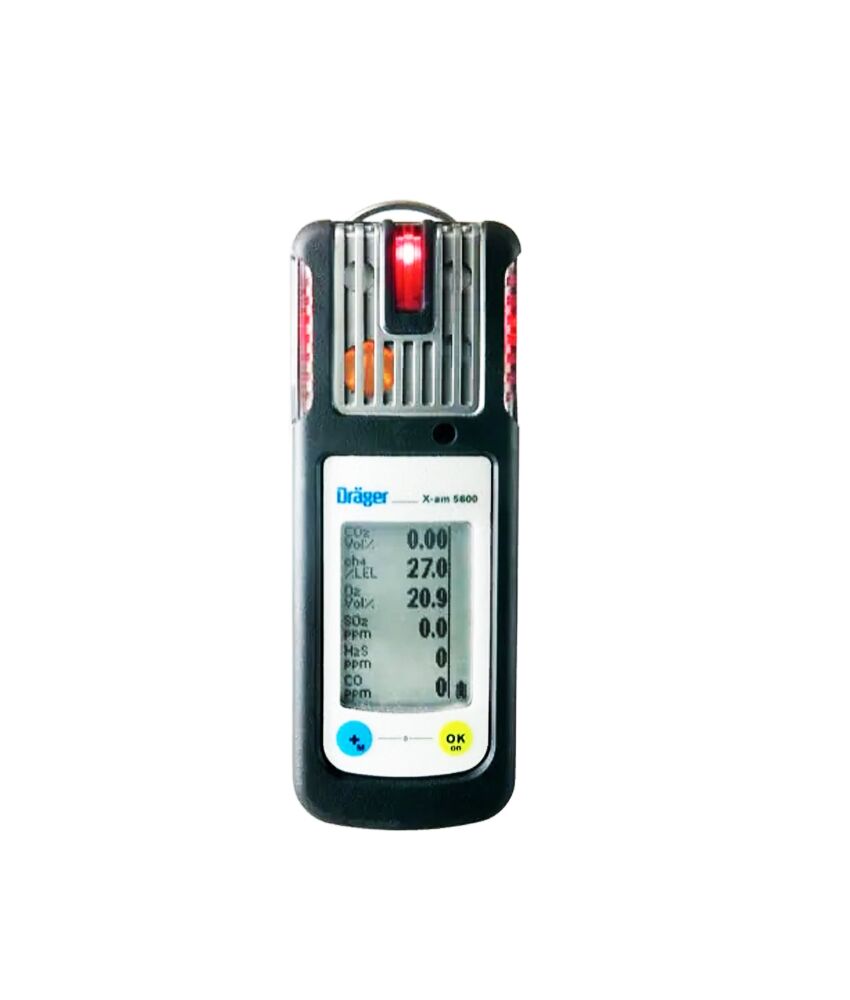

Featuring an ergonomic design and innovative infrared sensor technology, the Dräger X-am® 5600 is one of the smallest gas detection instruments for the measurement of up to 6 gases. Ideal for personal monitoring applications, this robust and water-tight detector provides accurate, reliable measurements of explosive, combustible, and toxic gases and vapors as well as oxygen.
• Small yet robust
• Durable infrared technology
• Single or dual sensor – accurate measurement results
• Also in combination with Hydrogen
• Various monitoring possibilities
• Flexible use
• Suitable for Ex-Zone 0
• Area monitoring
Portable gas detectors are mobile since they are carried on or by personnel. They are used by anyone who is entering a confined space to assess the gases inside and to measure the concentration of the oxygen, or where there’s the potential for the presence of dangerous gas or a lack of oxygen. The detector can be carried by the person so that the breathing zone is constantly monitored for safety.
Dimensions (W x H x D)
48 x 130 x 44 mm
Weight
220 – 250 g
Ambient conditions
Temperature–20 to +50 °C (-40 to +50 °C for max. 15 minutes)
Pressure-700 to 1,300 mbar
Relative humidity-Ambient conditions Relative humidity 1
Protection class
IP67
Alarm
Visual-360°
Audible-Multi-tone > 90 dB at 30 cm
Operating times
~ 9 h or rather ~ 10.5 h
Charging time
< 4 h)
Datalogger
cCan be read out via Infrared > 1,000 hours with 6 gases and a recording interval of 1 value per minute
Pump operation
Maximum hose length 45 m; 148 ft.
Approvals
ATEX-I M1 Ex da ia I Ma II 1G Ex da ia IIC T4/T3 Ga
IECEx-IECExEx da ia I Ma
Ex da ia IIC T4/T3 Ga
CSA (Canada & USA)-Class I Div. 1 Group A, B, C, D, E, F, G T.-Code T4/T3 A
/Ex da ia IIC T4/T3 /Ga
Measurement performance certificate-EN 50104-O2,EN 45544-1, EN 45544-2-CO & H2S,EN 60079-29-1-Methane to nonane, H2
CE mark-Electromagnetic Compatibility (Directive 2014/30/EU)
MED-Marine Equipment Directive (Directive 2014/90/EU
EAC-PO Ex ia I Ma X
0Ex ia IIC T4/T3 Ga X
