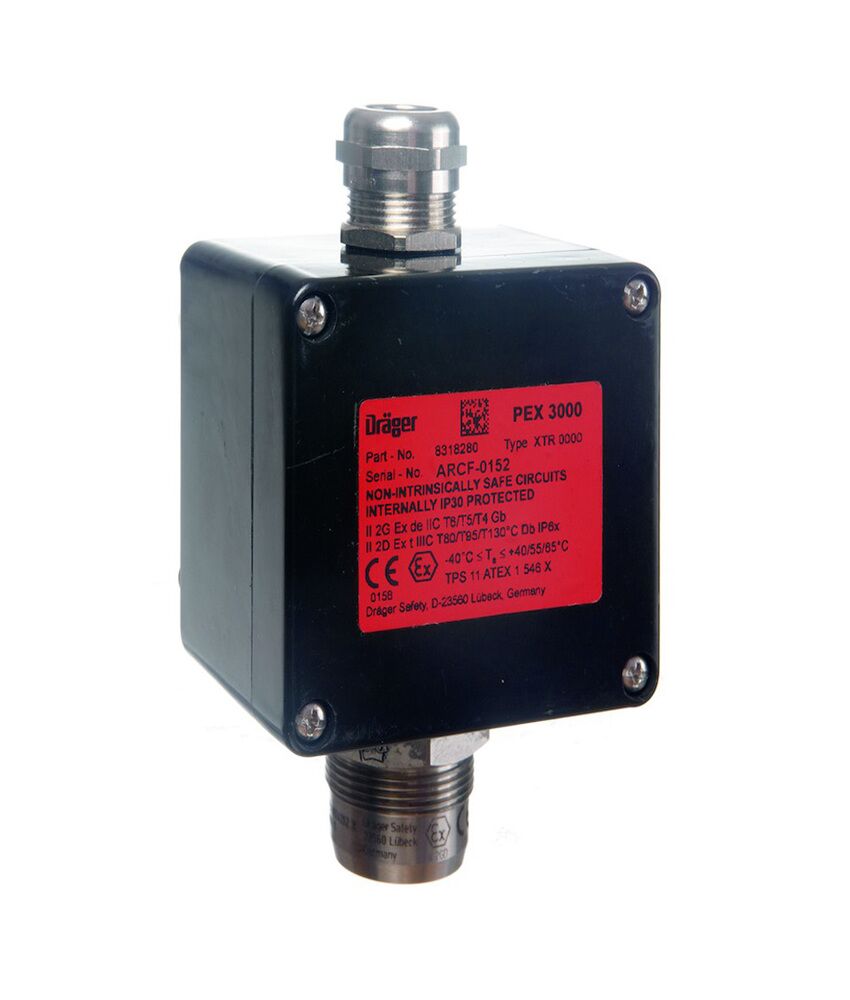

The transmitter Draeger PEX 3000 detects flammable gases and vapours in concentrations below their lower explosive limit (100 %LEL). It increases the explosion protection of your plant. Its catalytic bead sensor provides a long-term stable measuring signal and responds to gas within a few seconds.
• Six variants of transmitters
• Simple installation
• One-man Calibration
• Explosion Protection
• Low gas concentrations
• The catalytic bead sensor
• Oil refineries/mining/OnShore/Off Shore /Tank Farms/Water treatment plants
• Continous monitoring of Hydrocarbon , Hydrogen Flammable Gases using Catalytic technology without Display or any indication
• Normal measurment possible with 4-20mA
• Hazardous area Application (zone 1,Zone2)
• Continous monitoring of Hygrogen in battery rooms
Measuring range
Typ XTR 0000, XTR 0001 0 to 99 %LEL
Typ XTR 0010, XTR 0011 0 to 9.9 %LEL
Typ XTR 0090, XTR 0091 with measuring head SE Ex PR / HT DQ 0 to 99 %LEL
Typ XTR 0090, XTR 0091 with measuring head SE Ex LC DQ 0 to 9.9 %LEL
Power supply
12 to 30 V d.c. (nominal 24 V d.c.), max. 110 mA at 24 V
max. cable length (at 24 V, 250 Ohms)
2,400 m at 3 x 1.5 mm2, 1,600 m at 3 x 1.0 mm2, 1,200 m at 3 x 0.75 mm2
Signal output
Normal operation – 4 to 20 mA
Maintenance – 3.4 mA
Fault condition – < 1.2 mA
Response time (at 25 °C, methane)
t50: 3 … 5 s to t90: 8 … 10 s
Temperature
-40 to +65 °C (see below)
Pressure
700 to 1,300 hPa
Humidity
5 to 95 % r. H.
Enclosure material
glass fiber reinforced polyester (GRP)
Enclosure protection
IP 66
Dimensions (W x H x D)
ca. 80 x 145 x 55 mm
Weight
ca. 600 g (Typ XTR 0090, XTR 0091: ca. 450 g)
Expected sensor lifetime
typical > 3 years
Performance approval
acc. to EN 60079-29-1 for the a.m. gases and vapours (100 %LEL variants only)
