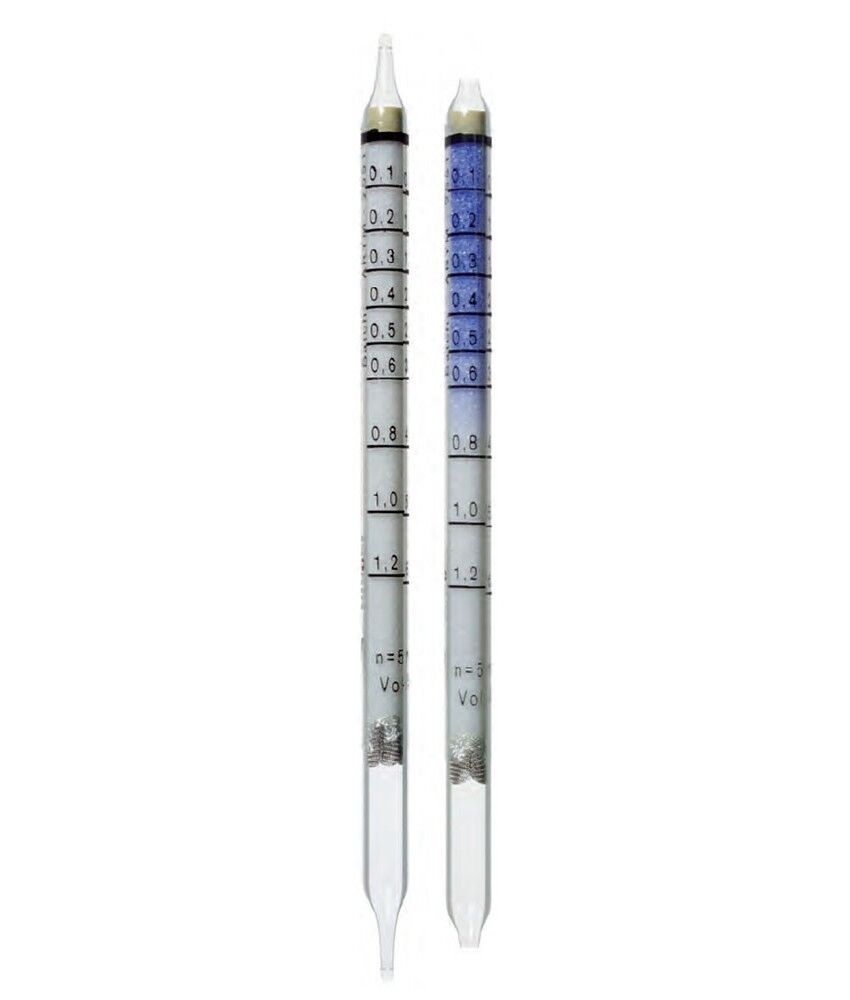

Gas detector tubes are one of the classic measurement methods used for gas analysis today. This versatile system can be used in numerous applications in industry, firefighting and disaster management, in the laboratory, marine, for environmental protection and in many other areas. Using Drager CO2 gas detection tubes you can measure 100-3000 ppm or 0.5 – 60% volume.
• Results are directly shown at the end of the measurement process
• Short measurement time: between 5 seconds to 15 minutes
• Quick and targeted measurements
• Easy handling
• Flexible use
• Air examinations at the workplace in the range of legal limit values
• Technical gas analysis in the areas of emission concentrations
• Measurements of compressed air / compressed gases
Carbon Dioxide 100/a
Range – 100 to 3000 ppm
Number of Strokes – 4
Part Number – 81 01 811
Carbon Dioxide 0.1%/a
Range – 0.5 to 6 Vol% – 0.1 to 1.2 Vol%
Number of Strokes – 30 – 2
Part Number – CH23 501
Carbon Dioxide 0.5%/a
Range – 0.5 to 10 Vol%
Number of Strokes – 30
Part Number – CH31 401
Carbon Dioxide 1%/a
Range – 1 to 20 Vol%
Number of Strokes – 30
Part Number – CH25 101
Carbon Dioxide 5%/A
Range – 5 to 60 Vol%
Number of Strokes – 2
Part Number – CH20 301
