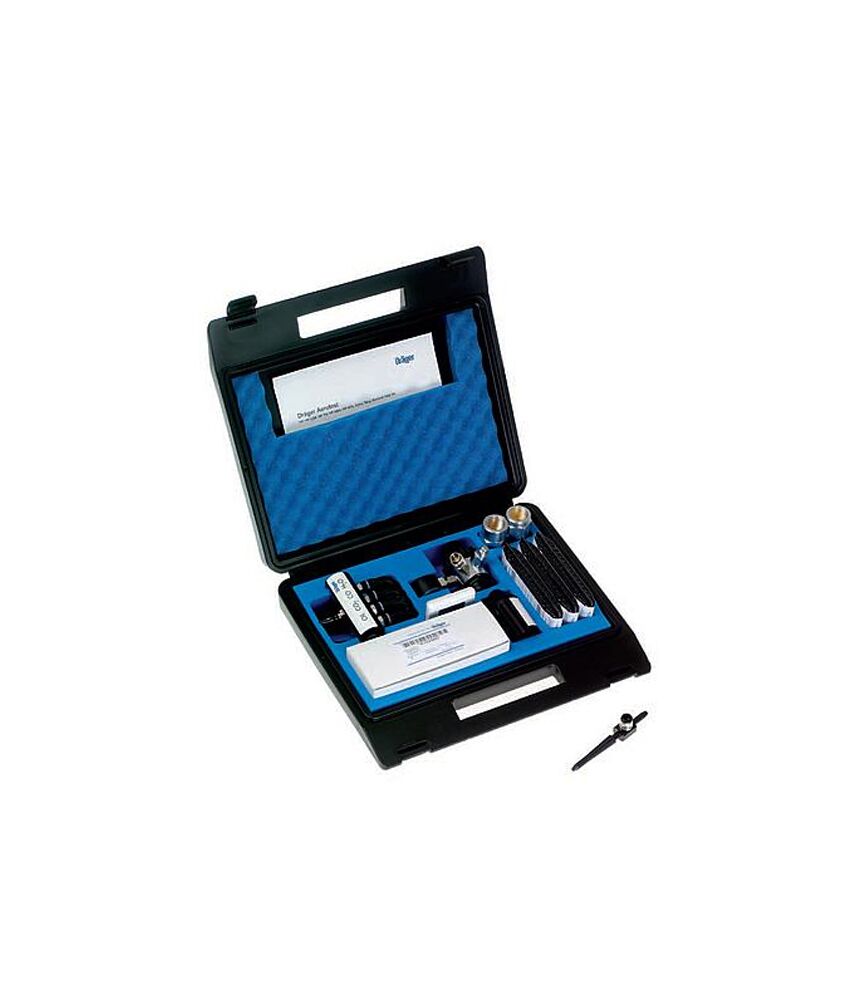

Dräger Aerotest Simultan HP
Dräger Aerotest Simultan HP is used to determine the quality of respiratory air in high-pressure applications. In combination with the new Dräger Oil Impactor the system offers a unique quality level for the monitoring of compressed air.
• Monitored breathing air
• Fast and simple application
• The Dräger Oil Impactor
• Always ready for use
By using the Dräger Aero test Simulant HP, the quality of the breathing air from a compressor or a compressed air cylinder can be tested. The application of the test system ensures the reliable testing in accordance with the purification standard EN 12 021. The Aerotest product family is based on the well known Dräger-Tubes® – a reliable and quick test method to detect and measure possible toxic gases. The Dräger Aerotest Simultan HP enables the quantitative detection of various potentially harmful substances, e.g. carbon monoxide,
carbon dioxide, water vapor and oil in dispersing compressed air. The values
can either be determined individually or simultaneously.
|Dimensions [L x W x H, mm]||350 x 300 x 85|
|Weight [kg]||Approx. 3.0|
|Supply Pressure [bar]||200 / 300|
|Flow [L/min]||0.2 and 4.0|
