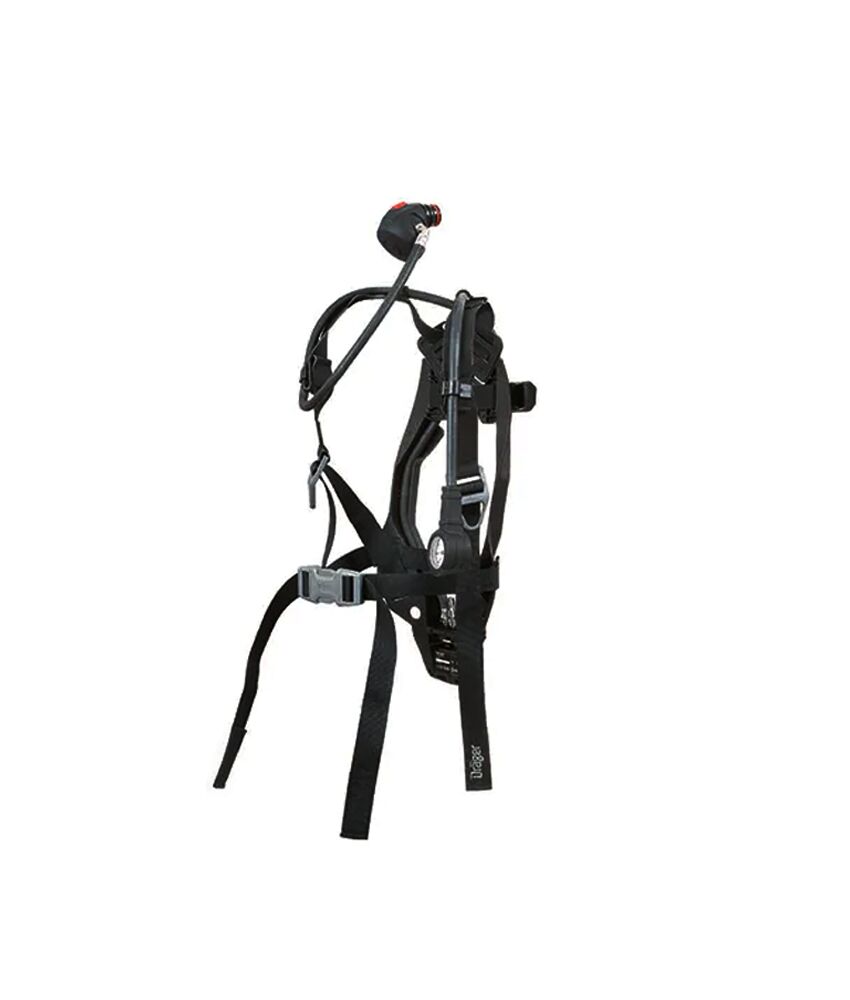

Dräger PAS Lite Breathing Apparatus
For use in industrial applications where a simple, robust, and easy-to-use breathing apparatus is required, the Dräger PAS® Lite Self-Contained Breathing Apparatus (SCBA) combines reliability with comfort and performance.
• Efficient load distribution
• Integrated hose design
• Service friendly
• Proven, robust, and flexible
A self-contained breathing apparatus (SCBA) is a type of respirator that contains breathable compressed air. They are used by fire fighters and by others who may be working in areas filled with smoke, toxic gas or other contaminants that are immediately dangerous to life and health.
|Dimensions (H x W x D)||23.2 x 11.4 x 6.3 inches (59 x 29 x 16 cm)|
|Weight (including LDV)||5.95 lb. (2.70 kg)|
|Weight with Integrated PAS ASV (including LDV)||7.72 lb. (3.50 kg)|
|Input Pressure||2216 PSI, 4500 PSI|
|Nominal 1st Stage Output Pressure||87-130 PSI|
|1st Stage Output Flow||>1000 L/min|
|LDV Output Flow||>400 L/min|
|Whistle Activation Pressure||554 PSI, 1125 PSI|
|Whistle Sound Level||>90 dBA|
