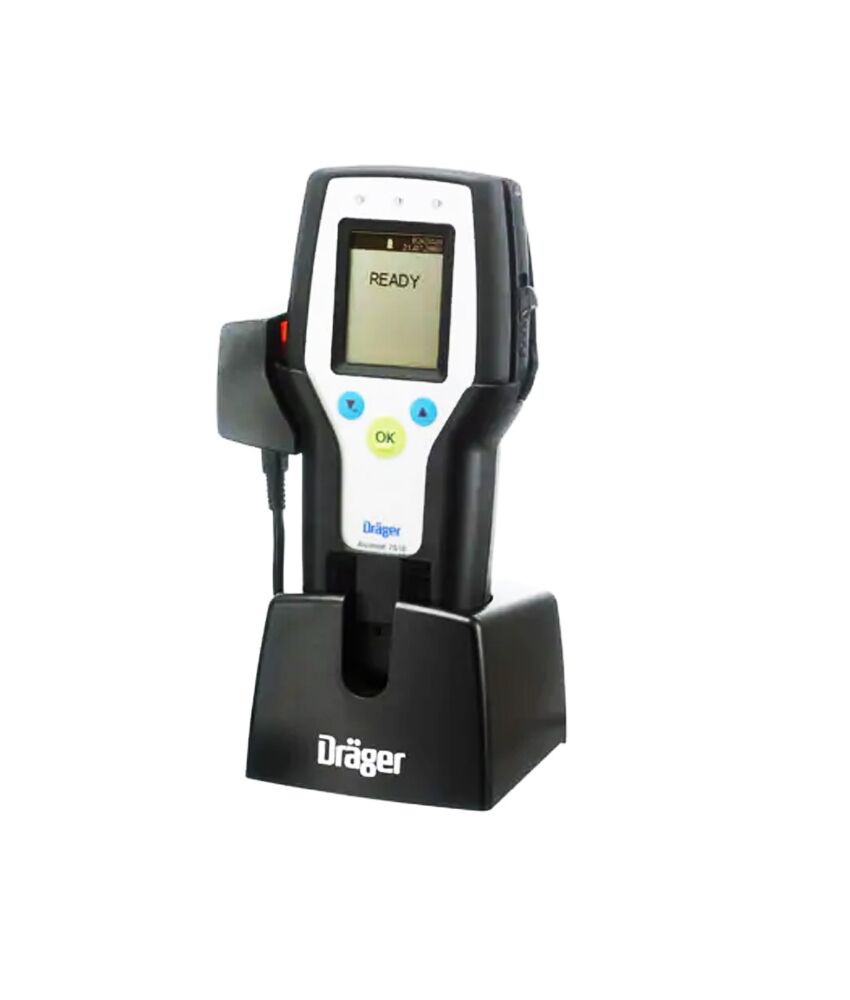

Dräger Alcotest 7510 ,Alcohol Monitoring Device
This compact and robust handheld breath alcohol measuring device is especially designed for advanced screening applications. Ideal for use by police, commerce and industry as an alcohol screening device. The Alcotest® 7510 can in many countries and markets be used as an evidential device.
• Ergonomic design
• State-of-the-art technology
• Easy to operate
• Hygienic and safe
• Comprehensive data management
• Low energy consumption
• High flexibility
The Alcotest 7510 allows for breath alcohol analysis for any application, and is listed on the National Highway Traffic Safety Administration’s Conforming Product List (NHTSA CPL) as an evidential breath tester. This instrument has received the OIML Certificate of Conformity.
|Principle of measurement||Electrochemical DrägerSensor in 1/4″ technology; alcohol-specific|
|Measurement range||0 to 3.0 mg/L (if the limits of the measuring range are exceeded, a message is displayed)|
Automatic when the minimum volume is reached.
Without mouthpiece or manual initiation of sampling is possible. The device can detect residual mouth alcohol during the delivery of the breath sample (if this option is activated).
|Ready for use||After approx. 6 s after powering up (temperature-dependent)|
|Display of measurement result||After approx. 6 s (at 0 mg/L);
after approx. 12 s (at 0.5 mg/L, room temperature)
|Operating temperature (temperature range is monitored)||-10 to +50 °C (14 to 122 °F|
|Display||LCD display with background illumination (128 x 160 pixels); 35 mm x 45 mm (1.38″ x 1.77″)|
|Datalogger||Storage of > 5,000 tests with test numbers, date and time|
|Power supply||Four AA alkaline or NiMH batteries, charge status is displayed. Approx. 1,500 breath tests can be performed with one set of batteries.
Optional: Lithium-Ion batteries can perform approx. 50% more measurements than with NiMH rechargeable batteries
|Dimensions (H x W x D)||Approx. 183 mm x 87 mm x 44 mm / 7.2″ x 3.4″ x 1.7″
with use of alkaline or NiMH bateries; Approx. 183 mm x 87 mm x 49 mm / 7,2″ x 3,4″ x 1,9″
with use of Lithium-Ion batteries
(including four NiMH batteries)
|Approx. 430 g (0.96 lbs)|
|Vibration and shock||Conforms to EN 60068-2-6,
