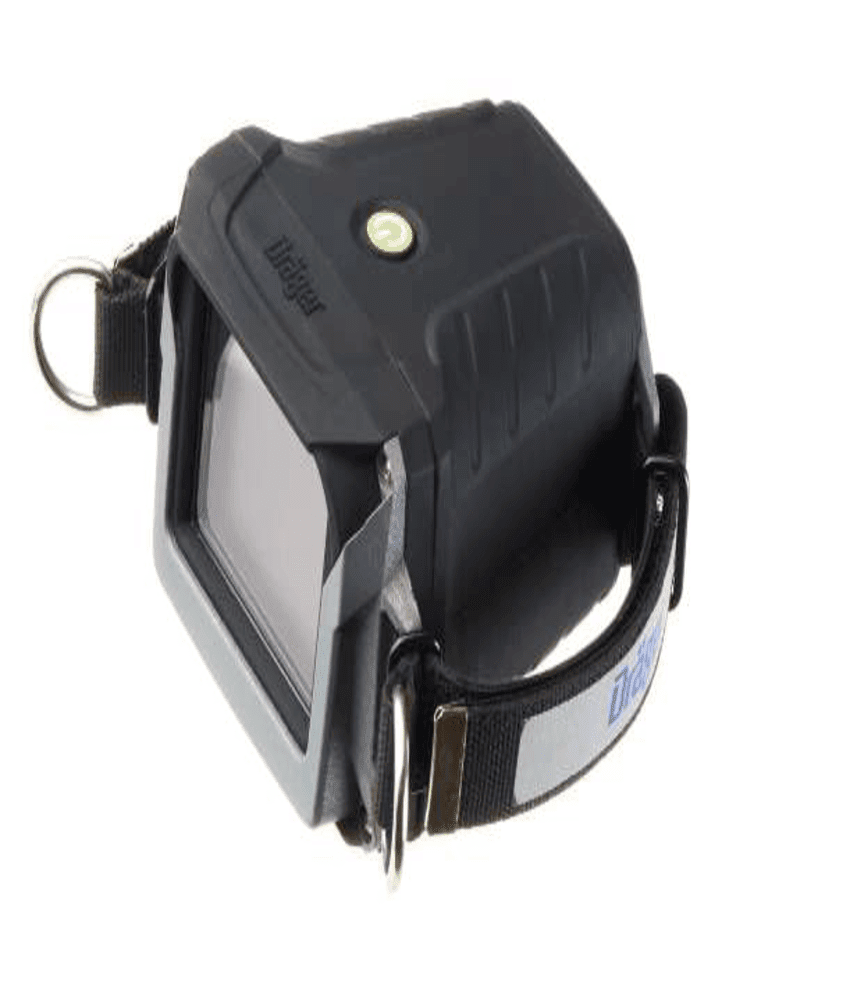

Small, light, robust and can be operated with just one button: The compact thermal imaging camera Dräger UCF FireVista provides excellent picture quality even under the most difficult operating conditions. The camera is ready for immediate use and provides the best possible support on firefighting deployments. Outstanding quality – especially in the price.
• Ideally suited for firefighting
• Excellent image quality
• Extremely durable and heat resistant
• Light and manageable
• Ease of use with one-button operation
• Reliable during use
• A high-quality thermal imaging camera at a compelling price
When fire, smoke and darkness make firefighting difficult, the Dräger thermal imaging camera provides a vital sense of orientation, supporting the firefighter to advance, to identify the source of the fire and to locate victims. The Dräger UCF FireVista helps you to optimally assess dangerous situations and thus obtain additional safety.
Camera dimensions (w x h x d)
165 x 140 x 85 mm
Weight
850 g incl. rechargeable battery
Display
Colour scheme – 1
Size (diagonal) – 3.5 in (9 cm)
Protective rubber cover
EPDM rubber
Carrying loops
High-temperature-resistant textile
Housing material
High-temperature-resistant plastic
Resolution
320 x 240 pixels
Thermal sensitivity
50 mK / 0.05 °C
Frame rate
60 Hz
Operating time (at 23°C) with rechargeable battery
approx. 5 hours
Temperature measurement
Digital display of temperature -20°C … 650°C
Operating temperature
260°C for 5 mins
Battery technology
Integrated
Battery type
LiFe PO4
Battery charging time
2 – 4 hours
Approvals and tests
IP67 Protection class for resistance to dust and immersion Drop test: 2 m onto concrete
