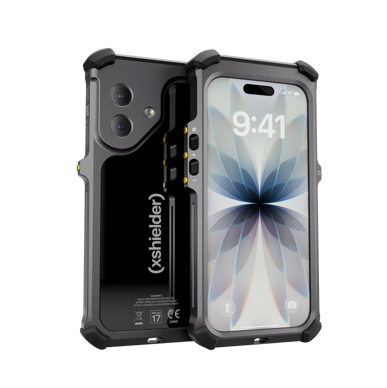

XShielder iPhone 17
The XShielder iPhone 17 delivers modern Apple mobility in a slim, lightweight explosion proof enclosure certified for ATEX & IECEx Zone 1 hazardous environments.
Built for connected field teams, it enables smooth access to inspection software, maintenance applications, digital reporting, communication tools, and industrial mobility platforms directly in hazardous areas — with fast, reliable, zero-lag performance.
Compact, practical, and easy to carry throughout the workday, the XShielder iPhone 17 is ideal for everyday industrial digitalization and connected worker operations.
Explosion-proof iPhone 17 enclosure certified for ATEX & IECEx Zone 1 hazardous environments. Available in ATEX-only and ATEX & IECEx certified variants with patented replaceable cover design for easier upgrades, sustainability, and lower lifecycle cost. Covers may only be opened by XShielder authorized personnel.
Apple Configuration
| Device | Apple iPhone 17 |
| Model | A3520 (Contact us for other models) |
| Storage | 256GB or 512GB |
| Color | Any |
General Specifications
| Size (mm) | 170.5 × 83.3 × 16.1 |
| Weight (g) | 330 |
| Audio | Enables use of all 4 microphones and 2 speakers on the iPhone 17 |
| Display | Super Retina XDR display 6.3-inch all-screen OLED display |
| Back Cameras | 48 MP Dual Fusion camera with 2x optical zoom |
| Front Camera | 18MP Center Stage Front Camera and Face ID |
| Charging | Fast, wireless charging – up to 25W |
| SIM | eSim supported. Physical SIM can be installed by XShielder upon request |
| Ingress | IP68 certified for water and dust (Pending testing) |
| Safety | Lanyard hole according to NS-9611 standard for safe work in heights (Pending certification) |
| Mounting | 1/4" tripod mount |
| Cover design & manufacturing | Norway |
Product Variants
The product consists of two main variants:
| XS1-SP-G02-C01-S01 | ATEX-only version (removable top lid) Lid is attached to the main chassis by screws. |
| XS1-SP-G02-C01-S02 | ATEX & IECEx version (cemented top lid) Lid is glued to the main chassis. |
Regardless of the model, the cover may only be opened by XShielder authorized personnel.
Certification*
| Ex Certification | ATEX/IECEx Zone 1 |
| Ex Certification Marking | II 2G Ex db IIC T6 Gb II 2D Ex tb IIIC T80°C Db Tamb -20°C to +50°C |
| Standards | EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-31:2014 IEC 60079-0:2017 IEC 60079-1:2014 IEC 60079:31:2013 |
| Note | *Certificate pending |
