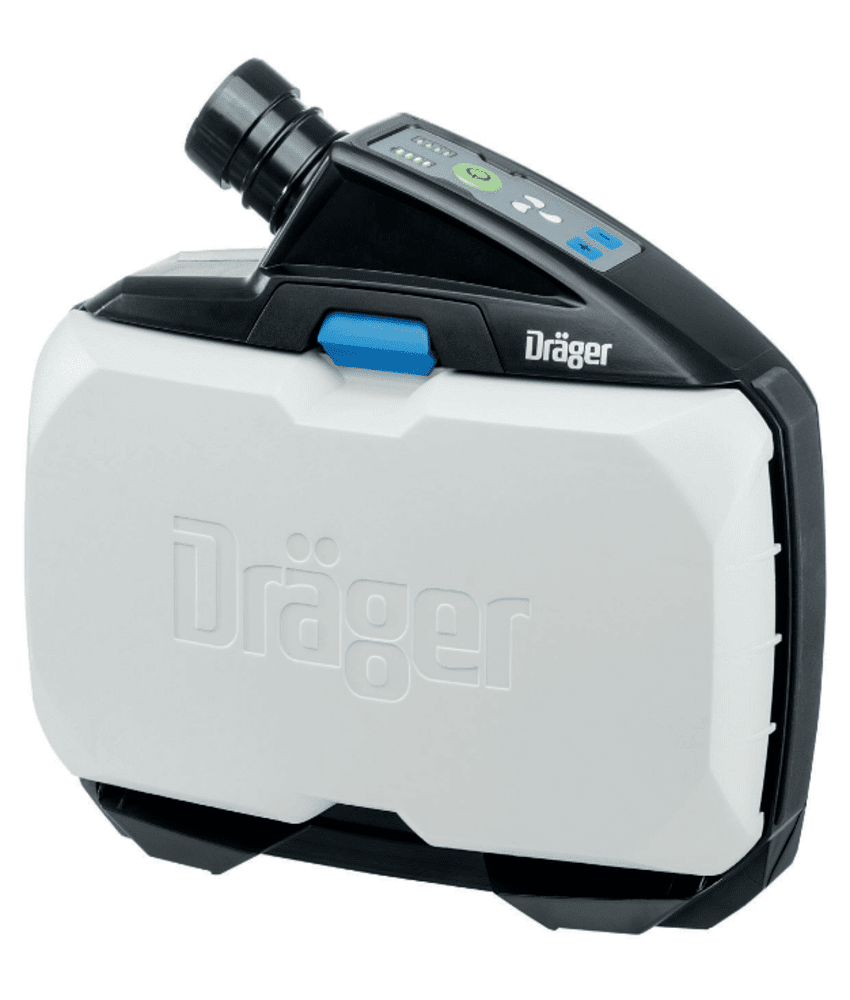

Challenging workplace conditions demand reliable solutions. The Dräger X-plore® 8000 offers a new level of intuitive handling combined with intelligent electronics that provide the high degree of safety your people need to focus on the task at hand.
• Robust: Designed for daily use in tough environments, even in explosive atmospheres
• Comfortable: Let the user focus on the task
• Safe: Self-explanatory operation minimises user error
• Easy to maintain: Efficient cleaning together with secure operation
• Modular: A wide range of components for every application
Hard working conditions require reliable solutions. The Dräger X-plore® 8000 combines simple handling with intelligent electronics for maximum safety allowing your employees to concentrate on immediate tasks.
The Dräger X-plore 8000 features heavy duty design with rubber protectors and high ingress protection (IP65) against dust and water jets from any direction. Two battery versions incorporating the latest Li-ion battery technology provide power for at least 4 h or 8 h, respectively. The air inlets are protected from frontal moving debris, ensuring that sparks or water do not come into direct contact with the filter.
In work areas requiring explosion protection, the special Dräger X-plore 8700 model provides optimal support. It is ex-approved and can be used in ex-zones 1, 2, 21 and 22.
Approvals
EN 12941 with Dräger X-plore® 8000 Hoods, Helmets and Visors
EN 12942 with Dräger X-plore® 4740/6000 half and full-face
masks incl. Dräger FPS® 7000 full-face mask
ATEX*
II 2G Ex ib IIB T4 Gb
II 2D Ex ib IIIB T135°C Db
TAMB: -10 °C < Ta < +50 °C
IECEx*
Ex ib IIB T4 Gb
Ex ib IIIB T135°C Db
TAMB: -10 °C < Ta < +50 °C
Ingress protection
IP65 (dust-tight and resistant to water jets from all sides)
Airflow
Automatic setting of operating type: loose- or tight-fitting
headpiece;
Adjustable in three levels:
Half and full-face mask: 115, 130 or 145 l/min
Hoods, Helmets and Visors: 170, 190 or 210 l/min
Standard battery life: 4 hours (at 210 l/min and P3 filter)
High-capacity battery: 8 hours (at 210 l/min and P3 filter)
Charging time
Approx. 4 hours (in two hours 80% can be reached)
Weight
Dräger X-plore® 8500 incl. standard battery and splash guard lid: approx. 1,400 g
Dräger X-plore® 8700 incl. standard battery (EX) and splash guard lid: approx. 1,500 g
Alarm system
Optical alarm (operating display)
Acoustical alarm (≥ 80 dB(A) at 1 m)
Vibration alarm
Belt length
Adjustable between 700 mm and 1,400 mm (standard and
decontamination version)
