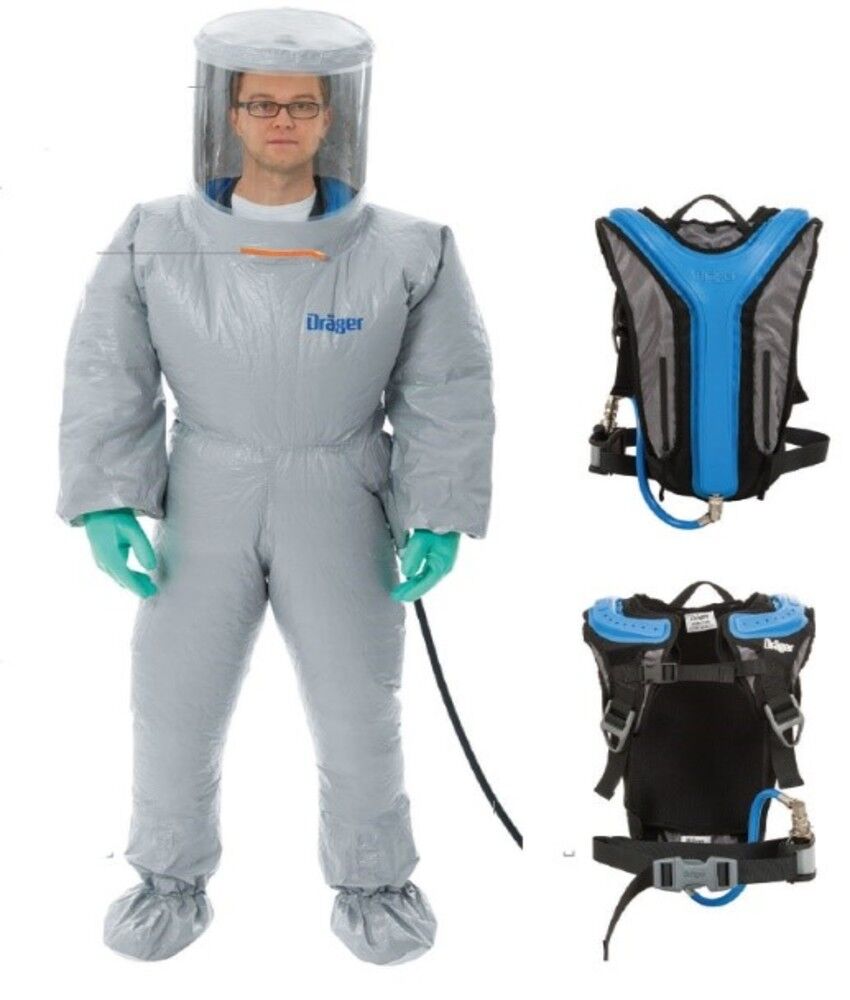

The Dräger SPC 3700 is a constant flow disposable suit. In combination with the newly designed vest CVA 0700 it offers ideal protection, comfort and flexibility. The liquid-tight protective suit (type 3) protects the wearer from contact with chemicals and allows greater movement, while the vest provides the necessary breathing and ventilation air for a pleasant cooling effect.
• Carefree breathing – even in tough environments
• Get more done with more safety
• Easy to don, easy to wear
• Quality you can see and feel
Carefree breathing – even in tough environments.
With SPC 3700, you are no longer dependent on bulky masks or heavy equipment such as an SCBA, and no longer have to experience breathing resistance.
You are provided with optimal quality air from an external air source. The special Dräger CVA (Cooling Vest Air) 0700 evenly distributes the breathing air and creates not only a cooling effect but also reduces fogging and improves vision. In addition,
Tjee noise level was optimised to less than 70 dB(A) for even more comfort.The extreme light weight of both, suit and vest, add to the overall comfort and make even long, complex or stressful jobs easier to perform and safer to complete
Input pressure (air supply)
3.0 bar to 10.0 bar
Flow rate
300 – 400 l/min (depending on the compressed air supply)
Max. hose length
1 to 100 m
Weight (depending on the suit size)
2.6 to 2.9 kg
Temperature (in operation)
+10 °C to +60 °C
Response pressure of warning whistle
2.5 bar (+/- 0.5 bar)
> 90 dBA down to 1.5 bar
Approvals
EN 14594 – Supplied by an airline breathing apparatus with constant airflow
Dräger CVA 0700
Material
Mesh fabric
Input coupling (standard)
Dräger CEJN 96 series
Input coupling (options)
Hansen, Foster, Schreader, Stäubli, Walther
Size
700 x 900 x 100 mm
Weight
1.9 kg (including the air supply manifold)
Lifetime
10 years
Approvals
EN 14594
Supplied by an airline breathing apparatus with constant airflow
Dräger SPC 3700
Material (single use)
Tychem® F (grey)
Storage time
5 years
Weight (depending on the suit size)
ca. 0.8 to 1.0 kg
Approvals
EN 14605, EN ISO 13982-1, EN 13034, EN 1073-1, EN 14126, EN 1149-1
